Duropal HPL Pyroex

Product standard

• EN 438-3

Density

• Min. 1,350 kg/m³

Reaction to fire

• Flame retardant
• C-s1,d0 (EN 13501-1)
• Depending on the core material and adhesive used, HPL bonded boards may have a different classification. We recommend the use of the product Duropal Element Pyroex.

Formaldehyde emission class

• E1 E05

Antimicrobial effect

• Surface with antimicrobial effect in 24 h for interior fit-out and finishes – Test Methodology JIS Z 2801 / ISO 22196

Product safety

• This product follows the REACH regulation EC 1907/2006 an article. Following Article 7 it does not need to be registered.
• The surface is physiologically safe, and approved for direct contact with food acc. to Regulation (EU) No. 10/2011.

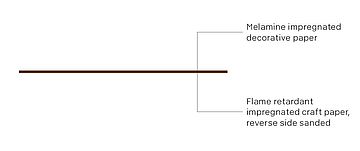

• The decorative surface and the core consists of paper layers, which are impregnated with thermosetting resins. The resins harden completely during the manufacturing process by heat and high-pressure. They form a stable, resistant and non-reactive material.

Special

• FSC certification or PEFC certification available on request.

Colour and surface match

• Decor, structure and core board all influence the final appearance of the end product.
• Due to the product-specific differences in production technologies, even identical decor/structure/core board combinations can result in slight optical and tactile deviations across different product groups and formats. Such deviations do not constitute a defect.
• The choice of surface structure in particular has a significant influence on the visual impression, the tactile perception as well as the technical characteristics of the product. Thus, the overall impression of a decor can change almost completely depending on the surface structure. Furthermore, mechanical influences on the product surface can lead to a higher contrast optical perception with dark decors.
• To ensure that you always achieve the best results with our products and to clarify any deviations in advance, we will be happy to advise you individually.

Processing

• Please respect the recommendations of BLFA (www.blfa.co.uk) an ICDLI (www.icdli.com) for the processing of high-pressure laminates.
• For the production of flat-bonded panels we recommend a symmetric construction. This means both sides should be identical HPL. If backing material (also HPL) is used, there is a risk of bowing.
• Sufficient conditioning is required prior to installation and assembly. The premises themselves need to be at the normal climatic conditions in which the material will later be used.
• Especially for large applications, we recommend paying attention to the colour and texture uniformity of the boards and cut products used when further processing and installing and that the production direction is taken into account.
• We recommend carrying out your own tests depending on the respective application and material requirement.

Storage, handling and transport

• The material must be stored flat, level and horizontal on clean surfaces at normal climatic conditions (Temperature 18–25 °C, relative humidity 50–65 %).
• Protect from moisture and wet conditions.
• Avoid direct exposure to heat and any possible dehydration of the surfaces by light- or heat radiation or by air currents from heating- or air conditioning systems.
• Avoid exposure to direct sunshine or UV rays, especially of products covered in film.
• The stack must be weighed-down with a cover panel.
• These storage conditions must continue to be ensured after removing panels from the stack.
• Vertical storage is not recommended.
• Please note that incorrect storage, regardless of its duration, may cause irreversible distortion to the sheets.
• Foreign bodies or impurities in the pallet of sheets can lead to impressions and damage to the surface of the board.
• Sheets / boards must not be moved against each other, they should be moved individually by hand or with suction equipment.
• Ensure that sufficiently large and sturdy bases, e.g. pallets, are used for the transportation of stacked sheets. The sheets on the pallet must be secured against slipping.

Health and safety

• Please wear the appropriate personal protective equipment (PPE) when processing and handling.
• Provide adequate extraction when splitting / sanding.

Cleaning and care

• The surface can be cleaned with water and gentle cleaning agents. To remove stubborn stains, please observe the recommendations in the data sheet "Cleaning of HPL surfaces" (www.icdli.com).

Disposal

• Energy recovery in industrial furnaces at temperatures above 700 °C.
