Areas of application
Individual furniture and interior design elements, wall coverings, partition elements, etc. in the creative interior design and object business. The material is suitable for use at trade fairs and events, in shops and stores, in restaurants, in hotels, in educational and recreational facilities, doctors’ surgeries and clinics. The material is not suitable for permanent use outdoors.
Certificates & labels
![](/file_pim/_processed_/2/3/csm_blue-angel-de-uz-76-im0027957_42b50e2d1d.jpg)
Blue Angel DE-UZ 76
The Blue Angel has been the federal government's eco-label for 40 years. Independent and credible, it sets demanding standards for environmentally friendly products and services. The Blue Angel is the orientation for sustainable purchasing.
![](/file_pim/_processed_/e/6/csm_ce-conformity-im0001118_c1a676d216.jpg)
CE conformity
The CE-marking documents that goods comply with the safety and health requirements of the European Union. Its aim is to guarantee safe, flawless and high-quality goods on all European markets.
![](/file_pim/_processed_/7/b/csm_fsc-certified-im0028043_61b8ac4ca1.jpg)
FSC-certified
The Forest Stewardship Council (FSC) is a global, not-for-profit organization dedicated to the promotion of responsible forest management worlwide. FSC defines standards based on agreed principles for responsible forest stewardship that are supported by environmental, social and economic stakeholders.
![](/file_pim/_processed_/c/c/csm_pefc-certified-im0028071_c9d6bcc285.jpg)
PEFC certified
PEFC is the largest institution for ensuring sustainable forest management through an independent certification system. Wood and wood products with the PEFC seal originate demonstrably from ecologically, economically and socially sustainable forestry.
![](/file_pim/_processed_/3/5/csm_ukca-conformity-im0029173_f99b0194cb.jpg)
UKCA conformity
The UKCA-marking documents that goods comply with the safety and health requirements of the United Kingdom. Its aim is to guarantee safe, flawless and high-quality goods on all United Kingdom markets.

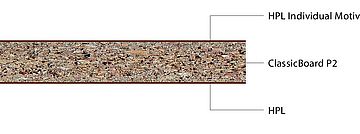

Product section
![](/file_pim/_processed_/3/6/csm_product-section-of-duropal-element-individual-motiv-p2-im0004828_d242218d43.jpg)
Availability
Formats
Length (mm) | Width (mm) | Thickness (mm), HPL 1.2 mm |
---|---|---|
2,800 | 2,070 | 18.4 | 21.4 |
Product features
Product standard
- EN 13894-1
Core material
- ClassicBoard P2: Urea resin-bonded particleboard, type P2 in accordance with EN 312, suitable for non load-bearing purposes in dry areas.
- ClassicBoard P2 CARB2: Low emission particleboard core, type P2 in accordance with EN 312, suitable for non load-bearing purposes in dry areas.
Reaction to fire
- Normally flammable
- D-s2,d0 (EN 13501-1, CWFT acc. to 2003/593/EG)
EC scope
- EN 438-7:2005
- HPL composite panel intended for internal wall and ceiling finishes (including suspended ceilings)
Formaldehyde emission class
- E1 E05
Antimicrobial effect
- Surface with antimicrobial effect in 24 h for interior fit-out and finishes – Test Methodology JIS Z 2801 / ISO 22196
Product safety
- This product follows the REACH regulation EC 1907/2006 an article. Following Article 7 it does not need to be registered.
- The surface is physiologically safe, and approved for direct contact with food acc. to Regulation (EU) No. 10/2011.
- We manufacture the panels without the use of halogens, heavy metals, preservatives, wood protectors or organic solvents.
Special
- Maximum motif format per board, incl. overprinting: 2,750 mm x 2,030 mm. Larger motifs can be tiled.
- Colour differences can occur in follow-up production lots.
- The motif cutting marks are not binding; therefore, each motif format must be checked before cutting to size.
- Assignment of the motifs parallel with the edge of the coreboard is not possible for production reasons.
- Cut to size is not available.
- Standard delivery without protective film.
- If possible, each motif is produced around the circumference with an overfill of approx. 15 mm and accordingly cutting marks are set.
- No guarantee of stability can be given for uneven constructions.
- Further core boards on request.
- FSC certification or PEFC certification available on request.
Colour and surface match
- Decor, structure and core board all influence the final appearance of the end product.
- Due to the product-specific differences in production technologies, even identical decor/structure/core board combinations can result in slight optical and tactile deviations across different product groups and formats. Such deviations do not constitute a defect.
- The choice of surface structure in particular has a significant influence on the visual impression, the tactile perception as well as the technical characteristics of the product. Thus, the overall impression of a decor can change almost completely depending on the surface structure. Furthermore, mechanical influences on the product surface can lead to a higher contrast optical perception with dark decors.
- To ensure that you always achieve the best results with our products and to clarify any deviations in advance, we will be happy to advise you individually.
Product handling
Processing
- Can be worked with carbide tipped tools on conventional woodworking machines.
- The motif cutting marks are not binding; therefore, each motif format must be checked before cutting to size.
- Assignment of the motifs parallel with the edge of the coreboard is not possible for production reasons.
- Sufficient conditioning is required prior to installation and assembly. The premises themselves need to be at the normal climatic conditions in which the material will later be used.
- Use a flat, firm surface to saw and drill on.
- Cutouts and inside corners must have a minimum radius of 8 mm to prevent notch stresses and therefore possible subsequent formation of cracks.
- Please note that sharp curring and quiet running tools are indispensable for perfect results.
- We recommend carrying out your own tests depending on the respective application and material requirement.
- Please observe our processing recommendations (see Downloads).
Machines and tools
- Can be worked with carbide (HW) or diamond (DP) tipped tools on conventional woodworking machines.
Edging
- Thick and thin edges are suitable.
- EVA and PUR hotmelts are recommended for edge adhesion.
Fitting technology
- All conventional removable and non-removable fittings for solid wood and wood materials are suitable.
- All conventional furniture fittings and standard profile systems are suitable.
Installation and assembly
- Sufficient conditioning is required prior to installation and assembly. The premises themselves need to be at the normal climatic conditions in which the material will later be used.
- Please ensure that the material is processed and fitted correctly and using the best available technology.
- Sufficient conditioning is required prior to installation. The premises themselves need to be air-conditioned according to the future use.
- Especially for large applications, we recommend paying attention to the colour and texture uniformity of the boards and cut products used when further processing and installing and that the production direction is taken into account.
Storage, handling and transport
- On level, full area surfaces (e.g. pallets), protected against moisture, in dry, ventilated rooms. Outdoor storage is not suitable.
- Please note that incorrect storage, regardless of its duration, may cause irreversible distortion to the sheets.
- Foreign bodies or impurities in the pallet of sheets can lead to impressions and damage to the surface of the board.
- Ensure that sufficiently large and sturdy bases, e.g. pallets, are used for the transportation of stacked sheets. The sheets on the pallet must be secured against slipping.
- Sheets / boards must not be moved against each other, they should be moved individually by hand or with suction equipment.
- Vertical storage is not recommended.
- Avoid direct exposure to heat and any possible dehydration of the surfaces by light- or heat radiation or by air currents from heating- or air conditioning systems.
- Panels must be fully and horizontally stored with edges flush on a flat and clean base covered with plastic foil. Cover the top panel fully with foil and a cover board.
Health and safety
- Please wear the appropriate personal protective equipment (PPE) when processing and handling.
- Provide adequate extraction when splitting / sanding.
Cleaning and care
- It is usually sufficient to wipe the surface with water and a mild detergent. Solvents such as white spirits, acetone or thinners may also be used (e.g. to remove graffiti) because they do not affect the surface.
- The surface can be cleaned with water and non-aggressive cleaning products. For more detailed information, please refer to our "Cleaning recommendation Decorative Pfleiderer products".
- For further information, please follow the recommendation in the "Cleaning HPL" leaflet on the site www.icdli.com.
Disposal
- We recommend material or energy recovery in approved plants.
Technical downloads
